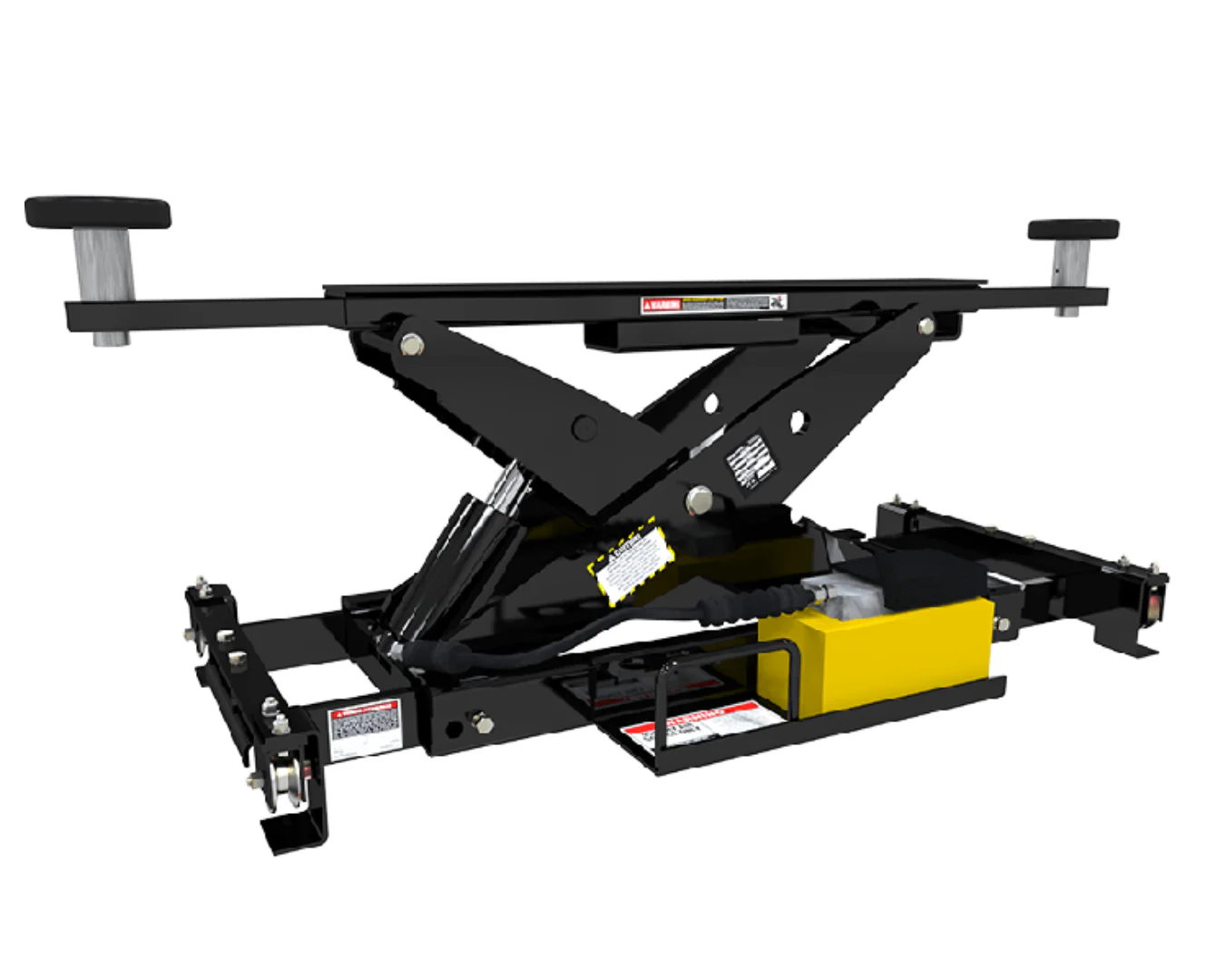

BendPak RJ45W Rolling Bridge Jack

BendPak RJ45W Rolling Bridge Jack

The RJ45W Rolling Bridge Jack is the perfect solution for DIYers and shops using the HD-9 car lift, offering full-wheel service capabilities with a 4,500-lb. lifting capacity. Its easy-roll wheels allow for smooth, effortless positioning along the lift's runways. Equipped with durable rubber contact pads and stackable adapters, this bridge jack provides reliable protection and convenience for high-clearance vehicles. The high-pressure hydraulic power unit, controlled by a foot pedal, makes it efficient for lifting and positioning. With three lock levels, it ensures precise height adjustments for optimal undercarriage access.

Features:

• Lifting Capacity: 4,500 lbs. for full-wheel service

• Compatibility: Ideal for use with HD-9 car lift

• Easy-Roll Wheels: Effortless positioning and adjustability

• Rubber Contact Pads: Protects vehicles from damage

• Stackable Adapters: Provides additional clearance for high-clearance vehicles

• Hydraulic Power Unit: High-pressure unit with foot pedal control

• Three Lock Levels: Adjustable to the perfect height for wheel and brake service

• Optional Air-Line Kit: For enhanced functionality

Specifications:

• Lifting Capacity: 4,500 lbs. (2,041 kg)

• Suitable Lift Models: HD-7 Series, HD-9 Series, GP-9 Series

• Minimum Drive-Over Height:

  • Pad Only: 4.5" (114 mm)

  • Pad + 2.75" Adapter: 7.25" (184 mm)

  • Pad + 5.5" Adapter: 10" (254 mm)

• Maximum Lifting Height:

  • Pad Only: 15.5" (394 mm)

  • Pad + 2.75" Adapter: 18.25" (464 mm)

  • Pad + 5.5" Adapter: 21" (533 mm)

• Support Base Width: 35.5" (902 mm) - 46.5" (1,181 mm)

• Max Arm Reach: 57" (1,448 mm)

• Min Arm Reach: 42" (1,067 mm)

• Time to Full Rise: 55 seconds

• Pump Type: Air/Hydraulic

• Air Pressure: 125 PSI (10-25 CFM)

• Max Operating Hydraulic Pressure: 2,490 PSI

• Power Requirement: None

• Shipping Weight: 378 lbs. (171 kg)

• Shipping Dimensions: 42" x 24" x 12" (1,066 mm x 609 mm x 304 mm)
